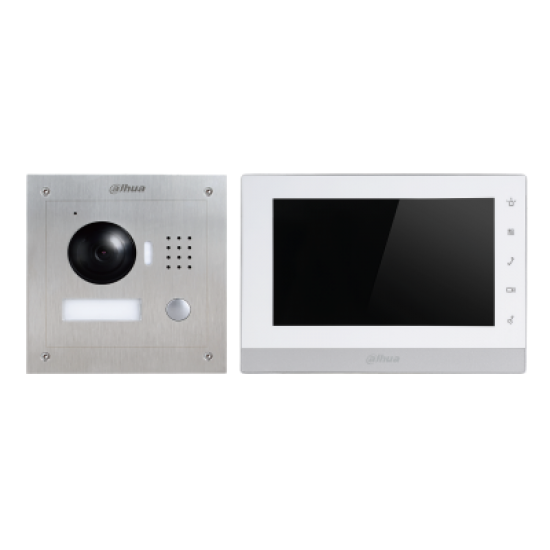

VTK-VTO2000A-VTH1550CH
.
VTK-VTO2000A-VTH1550CH KIT Θυροτηλεόρασης DAHUA
.
VTK-VTO2000A-VTH1550CH Tεχνικά χαρακτηριστικά
> 7-inch capacitive touch screen, resolution 800×480
> IPC surveillance
> Alarm integration
> 2-Door control
> Remote intercom with mobile APP
Video Outdoor Station | |
Model | VTO2000A |
System | |
Main Processor | Embedded Micro Processor |
Operation System | Embedded LINUX OS |
Video | |
Video Compression | H.264 |
Image Sensor | 1/3” 1.3MP CMOS |
Lens | 2.8mm |
Angle of View | D:120° H:90° |
Day/Night | Color Image |
Audio | |
Audio Compression | G.711 |
Audio Input | Omnidirectional Mic |
Audio Output | Built-in Speaker |
Bidirectional Talk | Support Dual-way Bidirectional talk |
Operation Mode | |
Keypad | Single Mechanical Button |
Interface | |
Door Control | 2(1 relay out for main lock, 1 extended by access control module) |
Alarm In | 2(1ch unlock button, 1ch feedback) |
RS485 | 1 |
Network | |
Ethernet | 10M/100Mbps Self-adaptive |
Network Protocol | TCP/IP |
General | |
Ingress Protection | IP54,IK07 |
Tamper Switch | 1 |
Installation | Surface & Flush |
Material | Stainless steel |
Power | DC 12V, or supply directly by VTNS1060A |
Power Consumption | Standby ≤1W, Work ≤10W |
Working Temperature | ﹣40°C~+60°C |
Relative Humidity | 10%~90%RH |
Dimensions | 129.9mm×32.2mm×140mm |
Weight | 0.8Kg |
Video Indoor Monitor | |
Model | VTH1550CHW |
System | |
Main Processor | Embedded Micro Process |
Operation System | Embedded LINUX OS |
Video | |
Video Compression | H.264 |
Audio | |
Audio Compression | G.711 |
Audio Input | All-direction Microphone |
Audio Output | Built-in Loudspeaker |
Bidirectional Talk | Support Dual-way Bidirectional talk |
Display | |
LCD Screen | 7“ 800x480, Capacitive |
Operation Mode | |
Input | Touch buttons |
Interface | |
Alarm In | 6 |
Alarm Out | 1 |
RS485 | 1 |
Network | |
Ethernet | 10M/100Mbps Self-adaptive |
Network Protocol | TCP/IP |
General | |
Memory Slot | Micro SD, Max 32G |
Installation | Surface |
Power | DC 12V, or supply directly by VTNS1060A |
Power Consumption | Standby ≤1.5W, work≤7W |
Working Temperature | -10°C~+55°C |
Relative Humidity | 10%~90%RH |
Dimensions | 200.5mm×136.5mm×22.0mm |
Weight | 0.8Kg |
SMART PSS SOFTWARE DOWNLOAD
.
