Τεχνικά Χαρακτηριστικά

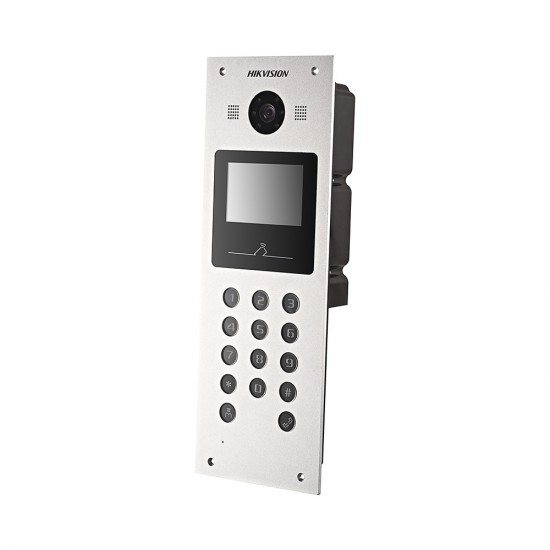

KD3002-VM
Video Camera CMOS 1.3 MP low light HD color camera
Compression H.264 Resolution 1280 × 720 Frame Rate PAL: 25 fps, NTSC: 30 fps
Illumination Built-in visible light LED; activates during call
Display Display Screen 3.5” color TFT LCD Display Resolution 480 × 320 Operation Interface On-screen LCD menu Operation Method Physical keypad
Audio Audio Input Built-in omnidirectional microphone Audio Output Built-in loudspeaker Compression G.711 U Compression Rate 64 Kbps Quality Features Noise suppression, feedback cancellation
Access Control Internal Card Reader Built-in Mifare card reader External Card Reader 1x 26-/34-bit Wiegand reader, or 1x RS-485 reader (Hikvision only; cannot coexist with DS-K2M060) Max Stored Cards 2500 Secure Module Connect to DS-K2M060 via RS-485 (optional; cannot coexist with external RS-485 reader)
Door Relay Door 1: 12V DC, provides up to 1A to lock; NO or NC Door 2: reserved for future use Unlock Methods Mifare card; intercom; keypad password Alarm Alarm Input 4 (door magnetic alarm, tamper alarm)
Alarm Output 2 (reserved for future use) Door Contact and Exit Button 4x dry contact input Connectivity
Network Port 1x RJ-45 10/100/1000 Mbps (labeled as LAN 1); TCP/IP, RTSP Analog Port 1x RJ-45 (reserved for future use, labeled as LAN 2) USB 1x USB 2.0, USB type A; for firmware update only, supports U-Disk
RS-485 1 RS-485 half-duplex port I/O input 4 I/O output 4 Wiegand 1 Wiegand port for accessing Wiegand IC card reader General Material Aluminum alloy Mounting Flush mount; surface mount with DS-KAB13-D
Power Supply 12 VDC (power adapter not included) Power Consumption ≤15 W (1.25A unloaded) Working Temperature -40° to 140° F (-40° to +60° C) Working Humidity 10% to 90%
Weather Protection IP65
Dimensions (L × W × H) 14.1" × 4.9" × 2.2" (357 mm × 124 mm × 55 mm)
Certifications FCC, UL 60950, IC, CE, C-TICK, ROHS, REACH, WEEE Intercom Features Managing
Client iVMS-4200 client software Maximum Number of Tenants 500 main indoor stations Maximum Number of Indoor Stations per Tenant 1 main and 5 extensions Receiving Clients DS-KH830X indoor stations iVMS-4200 (one client software per DS-KD3002)
Hik-connect smartphone app (requires adequate internet connection) Maximum Number of Door Stations 1 main and 8 extensions Dial to Tenant By room number Local Search by Directory Not available
Video Integration Supported Recorders Hikvision I-Series NVR; TurboHD 3.0 and 4.0 DVR Recorder Firmware Supported NVR: V3.4.931_170913 TurboHD 3.0 DVR: V3.4.85_170807 TurboHD 4.0 DVR: V3.5.22_171102
Supported Features Event text overlay, search playback by intercom event, search playback by card access event
