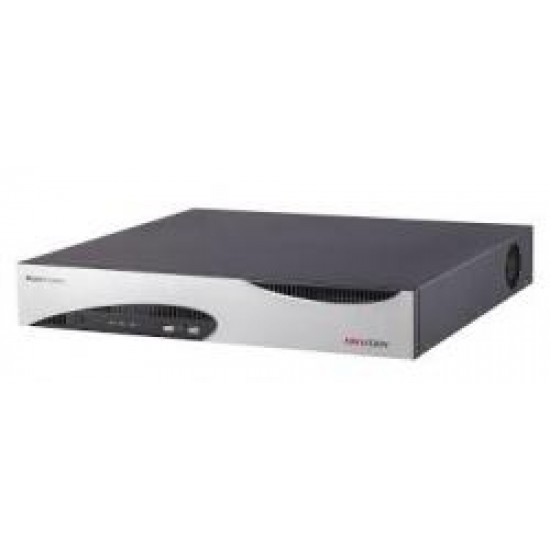

HIKVISION BLAZER EXPRESS IVMS 5200 STATION MANAGER ANPR 16IP POE 4 ANPR

HIKVISION BLAZER EXPRESS IVMS 5200 STATION MANAGER ANPR 16IP POE 4 ANPR
HIKVISION BLAZER EXPRESS IVMS 5200 STATION MANAGER ANPR 16IP POE 4 ANPR
0,00€
Χωρίς ΦΠΑ: 0,00€
  • Απόθεμα: Διαθέσιμο
  • Κωδικός: IVMS 5200
  • Βάρος: 3.00kg

HIKVISION BLAZER EXPRESS IVMS 5200 STATION MANAGER ANPR 16IP POE 4 ANPR

Το Blazer Express είναι ένας έξυπνος σταθμός λογισμικού διαχείρισης βίντεο που διαθέτει προεγκατεστημένο λειτουργικό σύστημα και εξαιρετικό iVMS και μπορεί να υποστηρίξει έως και 16 ή 32 δικτυακές κάμερες. Με ευέλικτα χαρακτηριστικά και τοπική αποθήκευση (δεν παρέχεται), η Blazer Express σας προσφέρει μια αποτελεσματική και εύκολη λύση ενιαίας εξυπηρέτησης για την εφαρμογή βιντεοεπιτήρησης, για εφαρμογές από ένα μικρό κατάστημα λιανικής έως μια πολύπλοκη εγκατάσταση επιτήρησης με πολλαπλές τοποθεσίες ΠΧ χώροι πολυκαταστημάτων,παρκιγκ,αυτοκινητόδρομοι κλπ Διαθέσιμα μοντέλα
 Blazer Express / 16 / 16P, Blazer Express / 32 / 16P

Main Features
Easy-To-Use and Highly Efficient
 Preinstalled operating system and pre-activated iVMS for easy installation
 Automatic device discovery for easy device addition
 Setup Wizard for basic settings
 Pluggable SSD design for convenient OS/iVMS maintenance
 Supports GPU hardware decoding to save CPU resources
 Multiple video search options (tag, lock, interval, segment, and VCA search) help you find relevant video clips easily
 PoE interfaces supporting plug-and-play function for connected PoE network cameras (only available for Blazer Express/16/8P, Blazer Express/16/16P, and Blazer Express/32/16P) Flexible and Scalable
 Connect multiple Blazer Express stations at remote sites with Blazer Express Client for centralized management
 Access Blazer Express via multiple free clients anytime, anywhere
 Compatible with third-party cameras via ONVIF™ or private protocols
 Provide SDK for third-party system integration Powerful Function
 Unified management of both Blazer Express and DVR/NVR via Blazer Express Control Client
 ANPR function available for convenient entrance/exit management
 Generate and export traffic flow report to check the statistics of vehicles passing through the ANPR units
 Managing POS terminal via for searching and checking transaction information and event
 Overlay the transaction information on the POS terminal linked camera’s live video
 Gather alarm information, alarm location, and alarm-linked video on the alarm center for centralized management and faster response
 Get a complete visual overview of your camera locations and the related live videos with map, and play videos and alarms directly on the map to quickly identify event details
 Display added maps on Live View page to check map and live video at the same time
 System Health Status function helps you monitor service, storage, and camera running status, and provides assurance of system maintenance Physical Interfaces Index Name 1 PoE Interface 2 ALARM IN and ALARM OUT 3 LAN Network Interface 4 USB Interface (left: USB 3.0, right: USB 2.0) 5 HDMITM Interface 6 RS-232 Serial Interface 7 VGA Interface 8 AUDIO IN 9 AUDIO OUT 10 GND 11 Power Input 12 Power Switch Notes:  PoE interface is only available for Blazer Express/16/8P, Blazer Express/16/16P, and Blazer Express/32/16P. For Blazer Express/16/16P, and Blazer Express/32/16P, there are 16 PoE interfaces available on the rear panel.  12 VDC power input is available for Blazer Express/16. 100 to 240 VAC power input is available for Blazer Express/16/8P, and Blazer Express/16/16P. 110 to 220 VAC power input is available for Blazer Express/32 and Blazer Express/32/16P.  Power switch is only available for Blazer Express/16/8P, Blazer Express/16/16P, Blazer Express/32 and Blazer Express/32/16P.

Specifications
Model  Blazer Express/16/16P
 Number of connected cameras 16
 Number of connected ANPR cameras 4 of 16
Number of connected POS terminals 8
Number of connected clients 10
Number of connected stations 15
Number of users 32
Number of roles 10
Number of areas 64
Number of area hierarchies 5
Number of maps 8
Number of map hierarchies 2
Number of hot spots 256
Number of hot regions 7
Number of vehicle lists 100
Number of vehicles 10,000 (up to 5,000 per vehicle list)
Number of configurable alarms 320
Number of alarm categories 25
Number of alarm priorities 255
Number of configurable events 320
Number of alarm logs 200,000
Number of event logs 3,000,000
Number of operation logs 200,000
Number of tags 200,000
Decoding performance (local) 2 * 4K / 12 * 1080p
Control Client support (local & remote) Yes
Web Client support Yes
Mobile Client support Yes
Third-party cameras support Yes
Alarm management support Yes
Map support Yes
Two-way audio support Yes
Broadcast support Yes
PTZ control support Yes
Fisheye expansion support Yes
People counting report support Yes
Heat map report support Yes
Traffic flow report support Yes
Incoming bandwidth 160 Mbps 320 Mbps Outgoing bandwidth 160 Mbps Operating system Windows Embedded System 7
Storage 2 HDDs connectable, up to 16 TB 4 HDDs connectable, up to 32 TB Memory 4 GB
SSD support Yes (64 GB)
Video output 1 HDMI output, 1 VGA output (independent)
Network interface 2 ×10M/100M/1000M self-adaptive Ethernet interface PoE interface  16 PoE interfaces for Blazer Express/16/16P
Provided power (PoE) N/A ≤120 W (of 8 PoE interfaces for Blazer Express/16/8P); ≤150 W (of 16 PoE interfaces for Blazer Express/32/16P)



IVMS 4200 DOWNLOAD                        SADP TOOL                           DVR DISC CALCULATOR          TOOLS MANAGER        REMOTE NET BACKUP



Xρήσιμα προγράμματα γιά την διαχείριση των καταγραφικών HIKVISION
