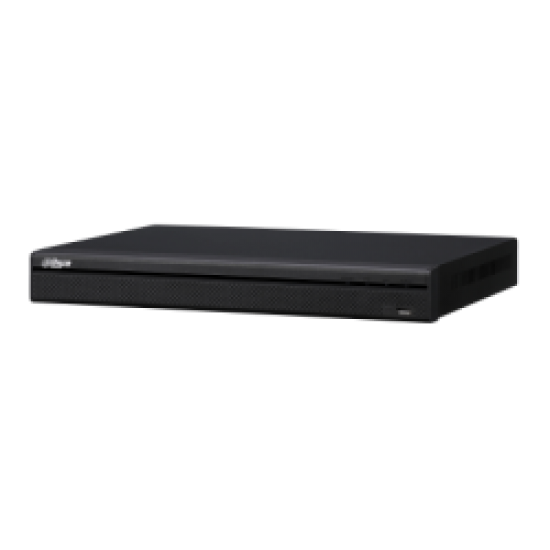

DAHUA NVR5416-16P-4KS2

DAHUA NVR5416-16P-4KS2
DAHUA NVR5416-16P-4KS2
860,00€
Χωρίς ΦΠΑ: 693,55€
  • Απόθεμα: Διαθέσιμο
  • Κωδικός: NVR5416-16P-4KS2
  • Βάρος: 7.00kg

Τεχνικά χαρακτηριστικά



NVR5416-16P-4KS2
16 Channel 1.5U 16PoE 4K&H.265 Pro Network Video Recorder

>H.265/H.264/MJPEG/MPEG4 codec decoding

> Max 320Mbps incoming bandwidth
> Up to 12Mp resolution preview&playback
> 2HDMI/VGA simultaneous video output
> 3D intelligent positioning with Dahua PTZ camera




http://www.dahuasecurity.com/uploads/image/20160830/20160830042152_19006.png





ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

System

Main ProcessorQuad-core embedded processor
Operating SystemEmbedded LINUX
Display
Interface2 HDMI (1 HDMI up to 3840x2160, Different Source ), 1 VGA
Resolution3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display1st screen:
16CH: 1/4/8/9/16
32CH: 1/4/8/9/16/25/36
64CH: 1/4/8/9/16/25/36
2nd screen: 1/4/8/9/16
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input16 Channel, Low Level Effective, Green Terminal Interface
Relay Output6 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger EventN/A
Playback and Backup
Sync Playback1/4/9/16
Search ModeTime /Date, Alarm, MD and Exact Search (accurate tosecond)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network/Internal SATA burner/eSATA Device
Storage
Internal HDD4 SATA III Ports, up to 8TB capacity for each HDD
HDD ModeSingle
eSATA1 eSATA port
SASN/A
Auxiliary Interface
Front CoverN/A
USB3 ports (2 Rear USB3.0,1 Front USB2.0)
RS2321 Port, for PC Communication and Keyboard
RS4851 Port, for PTZ Control
Third-party Support
Third-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more
Audio and Video
IP Camera Input16/32/64 Channel
Two-way Talk1 Channel Input, 1 Channel Output, RCA
Recording
CompressionH.265/H.264/MJPEG/MPEG4
Resolution12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.
Record Rate320Mbps
Bit Rate16kbps~20Mbps for per channel
Record ModeManual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Network
Interface1 RJ-45 port (10/100/1000Mbps)
Ethernet Port1 Independent 1000Mbps Ethernet Port
PoE16 ports (IEEE802.3af/at)
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P
Optical Fiber InterfaceN/A
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 2.4, CGI Conformant
Electrical
Power SupplySingle, AC 100~240V, 50/60 Hz
Power Consumption<17.5W (without HDD)
Environmental
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions(W×D×H)1.5U, 440mm×411.1mm×76mm (17.3" x 16.2" x 3.0")
Net Weight4.65kg (10.3 lb) (without HDD)
Gross Weight7kg(15.4 lb)(without HDD)
Certifications
CEEN55022, EN55024, EN50130-4, EN60950-1
FCCPart15 subpartB,ANSI C63.4-2014
ULUL60950-1+CAN/CSA C22.2 No.60950-1
