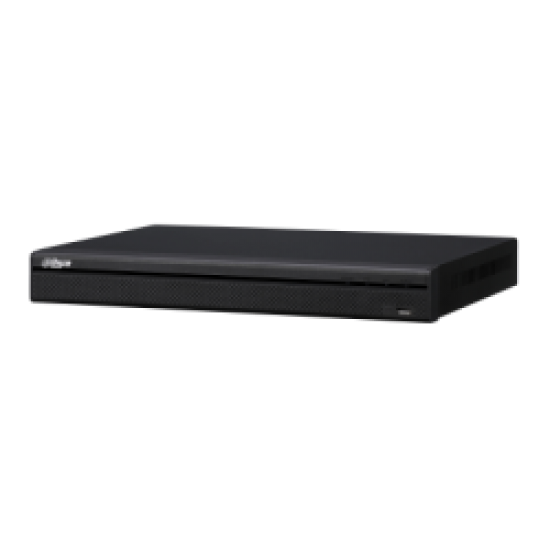

DAHUA NVR4232-4KS2 NVR 32 IP καμερών έως 8 Mpixel
0,00€
Χωρίς ΦΠΑ: 0,00€
DAHUA NVR4232-4KS2 NVR 32 IP καμερών έως 8 Mpixel
| NVR4232-4KS2 | ||
| 32 Channel 1U 4K&H.265 Lite Network Video Recorder | ||
> H.265/H.264 codec decoding | ||
| > Max 200Mbps Incoming Bandwidth | ||
| > Up to 8MP Resolution for Preview and Playback | ||
| > HDMI/VGA simultaneous video output | ||
| > Support ANR technology to enhance the storage reliability when the network break down | ||
| ||
System | ||
| Main Processor | Quad-core embedded processor | |
| Operating System | Embedded LINUX | |
| Display | ||
| Interface | 1 HDMI, 1 VGA | |
| Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 | |
| Multi-screen Display | 8CH: 1/4/8/9 | |
| 16/32CH: 1/4/8/9/16 | ||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Video Detection and Alarm | ||
| Trigger Events | Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | |
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Tampering | |
| Alarm input | 4 Channel, Low Level Effective, | |
| Green Terminal Interface | ||
| Relay Output | 2 Channel, NO/NC Programmable, | |
| Green Terminal Interface | ||
| Playback and Backup | ||
| Playback | 8CH: 1/4/8 | |
| 16/32CH: 1/4/8/16 | ||
| Search Mode | Time/Date, Alarm, MD & Exact search | |
| (accurate to second), Smart search | ||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, | |
| Next File, Previous File, Next Camera, | ||
| Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom | ||
| Backup Mode | USB Device/Network | |
| Storage | ||
| Internal HDD | 2 SATA III Port, Up to 6 TB capacity for each HDD | |
| HDD Mode | Single | |
| eSATA | N/A | |
| Auxiliary Interface | ||
| USB | 2 USB Ports (1 USB2.0, 1 USB3.0) | |
| RS232 | N/A | |
| RS485 | N/A | |
| Third-party Support | ||
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, | |
| Canon, CP Plus, Dynacolor, Honeywell, Panasonic, | ||
| Pelco, Samsung, Sanyo, Sony, Videotec, and more | ||
Audio and Video | ||
| IP Camera Input | 8/16/32 Channel | |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA | |
| Recording | ||
| Compression | H.265/H.264 | |
| Resolution | 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. | |
| Record Rate | 200Mbps | |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel | |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop | |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: | |
| 1 ~ 30 sec, Post-record: 10 ~ 300 sec | ||
| Network | ||
| Interface | 1 RJ-45 Port (10/100/1000Mbps) | |
| Ethernet Port | 1 Independent 1000Mbps Ethernet Port | |
| PoE | N/A | |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, | |
| IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip | ||
| Max. User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android | |
| Interoperability | ONVIF 2.4, CGI Conformant | |
| Electrical | ||
| Power Supply | DC12V/4A | |
| Power Consumption | <6.9W (Without HDD) | |
| Environmental | ||
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa | |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH | |
| Construction | ||
| Dimensions | 1U, 375mm×281.5mm×56mm | |
| (14.8" x 11.1" x2.2") | ||
| Net Weight | 1.6kg (3.5 lb) (without HDD) | |
| Gross Weight | 3.2kg(7.1 lb)(without HDD) | |
| Certifications | ||
| CE | EN55032, EN55024, EN50130-4, EN60950-1 | |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 | |
| UL | UL60950-1+CAN/CSA C22.2 No.60950-1 |
