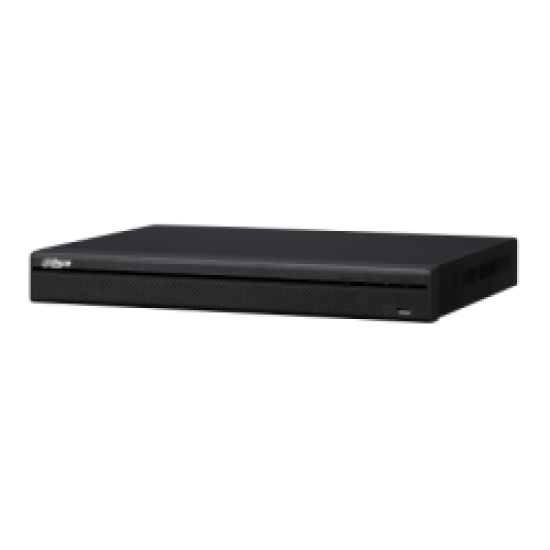

DAHUA NVR4216/4KS2 NVR 16 καναλιών

DAHUA NVR4216/4KS2  NVR 16 καναλιών
DAHUA NVR4216/4KS2 NVR 16 καναλιών
369,00€
Χωρίς ΦΠΑ: 297,58€
  • Απόθεμα: Διαθέσιμο
  • Κωδικός: NVR4216-4KS2
  • Βάρος: 4.40kg

DAHUA NVR4216-4KS2 NVR 16 καναλιών



Tεχνικά χαρακτηριστικά

16/32 Channel 1U  4K&H.265 Lite Network Video Recorder
> H.265/H.264 codec decoding

> Max 200Mbps Incoming Bandwidth
> Up to 8MP Resolution for Preview and Playback
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 16PoE ports
> Support ANR technology to enhance the storage reliability when the network break down.


http://www.dahuasecurity.com/uploads/20160824/2016082411064441.png
System
Main ProcessorQuad-core embedded processor
Operating SystemEmbedded LINUX
Display
Interface1 HDMI, 1 VGA
Resolution3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display1/4/8/9/16
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger EventsRecording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video DetectionMotion Detection, MD Zones: 396(22×18), Video Loss & Tampering
Alarm input4 Channel, Low Level Effective,

Green Terminal Interface
Relay Output2 Channel, NO/NC Programmable,

Green Terminal Interface
Playback and Backup
Playback1/4/8/16
Search ModeTime/Date, Alarm, MD & Exact search

(accurate to second), Smart search
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play,

Next File, Previous File, Next Camera,

Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Storage
Internal HDD2 SATA III Port, Up to 6 TB capacity for each HDD
HDD ModeSingle
eSATAN/A
Auxiliary Interface
USB2 USB Ports (1 USB2.0, 1 USB3.0)
RS232N/A
RS485N/A
Third-party Support
Third-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom,

Canon, CP Plus, Dynacolor, Honeywell, Panasonic,

Pelco, Samsung, Sanyo, Sony, Videotec, and more
Audio and Video
IP Camera Input16/32 Channel
Two-way Talk1 Channel Input, 1 Channel Output, RCA
Recording
CompressionH.265/H.264
Resolution8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
Record Rate200Mbps
Bit Rate16Kbps ~ 20Mbps Per Channel
Record ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
Record Interval1 ~ 120 min (default: 60 min), Pre-record:

1 ~ 30 sec, Post-record: 10 ~ 300 sec
Network
Interface1 RJ-45 Port (10/100/1000Mbps)
Ethernet Port1 Independent 1000Mbps Ethernet Port
PoE16 ports (IEEE802.3at/af)
Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,

IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 2.4, CGI Conformant
Electrical
Power SupplyAC100V ~ 240V, 50 ~ 60 Hz
Power ConsumptionNVR: <13.2W (Without HDD)
PoE: Max 25.5w for single port, 130w in total
Environmental
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions1U, 375mm×327.5mm×53mm

(14.8" x 12.9" x2.1")
Net Weight2.7kg (6.0 lb) (without HDD)
Gross Weight4.4kg(9.7lb)(without HDD)
Certifications
CEEN55032, EN55024, EN50130-4, EN60950-1
FCCPart 15 Subpart B, ANSI C63.4-2014
ULUL60950-1+CAN/CSA C22.2 No.60950-1
