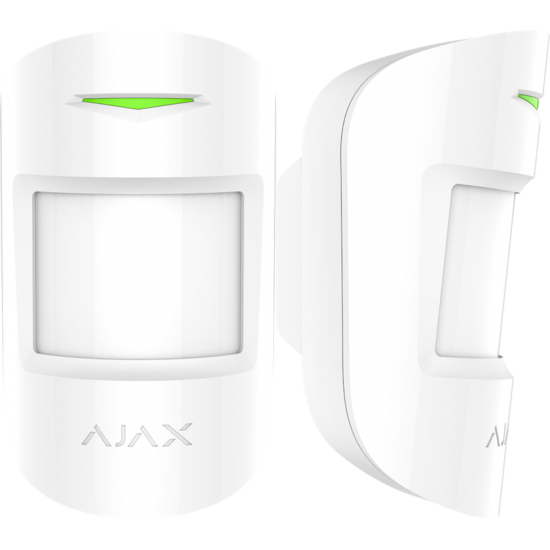

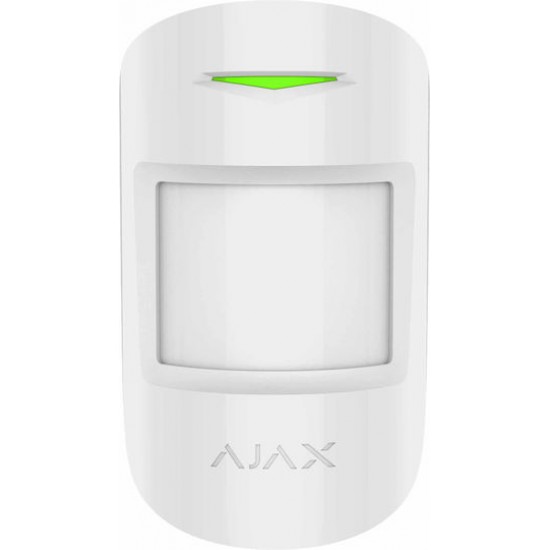

- Ασύρματος ανιχνευτής κίνησης με ενσωματωμένο ανιχνευτή θραύσης,
- Ρυθμιζόμενη ευαισθησία σε τρία διαφορετικά επίπεδα
- Ατροσία σε κατοικίδια κάτω από τα 20 κιλά
- Χρησιμοποιεί τον αλγόριθμο SmartDetect για την αποφυγή ψευδών συναγερμών
- Εξαλείφει ψευδείς συναγερμούς από εργαλεία και ηλεκτρομαγνητικές παρεμβολές χρησιμοποιώντας ένα οπτικό εξάρτημα FresnelTech, κατασκευασμένο από υλικό POLY IR4 και έναν αισθητήρα PIT της Excelitas
- Λειτουργεί υπό τις περισσότερες συνθήκες λόγω ψηφιακής αντιστάθμισης θερμοκρασίας
- Χρησιμοποιεί ανίχνευση θραυσμένου γυαλιού δύο παραγόντων σε χαμηλές και υψηλές συχνότητες για την αποτροπή ψευδών συναγερμών
- Η αμφίδρομη επικοινωνία με το Ajax Hub επιτρέπει περιοδικές δοκιμές και προσαρμογές
- Έχει διάρκεια ζωής μπαταρίας έως 5 έτη
- Δεν χρειάζεται να αποσυναρμολογείτε το σώμα όταν εγκαθιστάτε χρησιμοποιώντας υποστηρίγματα SmartBracket
- Η ποιότητα της περιοχής σύνδεσης και ανίχνευσης μπορεί να δοκιμαστεί εξ αποστάσεως
- Συνδέεται με το Ajax Hub με ένα μόνο κλικ
- Μπορεί να χρησιμοποιηθεί με συστήματα ασφαλείας τρίτων κατασκευαστών με την χρήση των μονάδων uartBridge και ocBridge Plus
- Ασύρματος ανιχνευτής κίνησης -θραύσης εσωτερικού χώρου
- Απόσταση ανίχνευσης κίνησης Έως 12 μέτρα
- Κίνηση και ευαισθησία στο γυαλί:3 επίπεδα ρυθμιζόμενα (χαμηλή, μέτρια, υψηλή)
- Γωνία ανίχνευσης κίνησης:88,5 ° οριζόντια / 80 ° κάθετα
- Προτεινόμενο ύψος εγκατάστασης:2,4 m (7,9 ft)
- Επιλογές αγνοώντας τα κατοικίδια ζώα:Βάρος έως 20 kg (44 lb), ύψος μέχρι 50 cm (19,7 in)
- Απόσταση ανίχνευσης γυαλιού:Έως 9 μέτρα (29,5 πόδια)
- Στοιχείο ανίχνευσης:Pyrosensor (κίνηση), μικρόφωνο electret (διάλειμμα γυαλιού)
- Προστασία κατά των παραβιάσεων:Διαθέσιμος
- Ισχύς σήματος radio20 mW
- Συχνότητα επικοινωνίας:(868,0-868,6 MHz)
- Μέγιστη απόσταση μεταξύ ανιχνευτή και κεντρικής μονάδας:Μέχρι 1.200 μ. (σε ανοιχτό χώρο)
- Παροχή ηλεκτρικού ρεύματος:CR123A
- Τάση τροφοδοσίας:3 V
- Διάρκεια ζωής μπαταρίας:Έως 5 χρόνια
- Εύρος θερμοκρασίας λειτουργίας:Από 0 ° C (+ 32 ° F) έως + 50 ° C (+ 122 ° F)
- Υγρασία λειτουργίας:Μέχρι και 80%
- Διαστάσεις:110χ65x50 mm (4.33x2.55x1.96 in)
AJAX HUB Oδηγίες χρήσης
AJAX Hub User Manual
Updated August 7, 2020
Hub is a central device of the Ajax security system, coordinating the connected devices, and interacting with the user and security company. Hub is developed only for indoor use.
Hub requires Internet access to communicate with the cloud server Ajax Cloud—for configuring and controlling from any point of the world, transferring event notifications, and updating the software. The personal data and system operation logs are stored under multilevel protection, and information exchange with Hub is carried out via an encrypted channel on a 24-hour basis.
Communicating with Ajax Cloud, the system can use the Ethernet connection and GSM network.
Please use both communication channels to ensure more reliable communication between the hub and Ajax Cloud.
Hub can be controlled via the app for iOS, Android, macOS, or Windows. The app allows responding promptly to any notifications of the security system.
Follow the link to download the app for your OS:
The user can customize notifications in the hub settings. Choose what is more convenient for you: push notifications, SMS, or calls. If the Ajax system is connected to the central monitoring station, the alarm signal will be sent directly to it, bypassing Ajax Cloud.
Up to 100 Ajax devices can be connected to the hub. The protected Jeweller radio protocol ensures reliable communication between the devices at a distance of up to 2 km in the line of sight.
Use scenarios to automate the security system and decrease the number of routine actions. Adjust the security schedule, program actions of automation devices (Relay, WallSwitch or Socket) in response to an alarm, Button press or by schedule. A scenario can be created remotely in the Ajax app.
Sockets and Indication
- LED logo indicating the hub status
- SmartBracket attachment panel (perforated part is required for actuating the tamper in case of any attempt to dismantle the hub)
- Socket for the power supply cable
- Socket for the Ethernet cable
- Slot for the micro SIM
- QR code
- Tamper button
- On/Off button
When clicking the power button, the Ajax logo lights up green for a second. Right after that, the logo changes its color to red, indicating that the hub is loading. When loading is complete, the color of the logo depends on the connection with Ajax Cloud.
If the hub is not connected to the power supply, the logo lights up for 3 minutes, then flashes every 20 seconds.
Communication with Ajax Cloud
Highlight colour notifies of the communication with the Ajax Cloud
|Lights white||Both communication channels are connected (Ethernet and GSM)|
|Lights bright green||One communication channel is connected|
|Lights red||The hub is not connected to the Internet or there is no communication with the server|
Connecting to the Network
- Open the hub lid by shifting it down with force.
Be careful and do not damage the tamper protecting the hub from dismantling!
- Connect the power supply and Ethernet cables to the sockets.
1 — Power Socket
2 — Ethernet socket
3 — SIM-card slot
- Press and hold the power button for 2 seconds until the logo lights up. The hub needs approximately 2 minutes to identify the available communication channels.
The bright green or white logo color indicates that the hub is connected to Ajax Cloud.
If the Ethernet connection does not occur automatically, disable proxy, filtration by MAC addresses and activate the DHCP in the router settings: the hub will receive an IP address. During the next setup in the web or mobile app, you will be able to set a static IP address.
To connect the hub to the GSM network, you need a micro-SIM card with a disabled PIN code request (you can disable it using the mobile phone) and a sufficient amount on the account to pay for the GPRS, SMS services and calls.
In some regions, Hub is sold with a SIM card along
If the hub does not connect to Ajax Cloud via GSM, use Ethernet to set up the network parameters in the app. For the proper setting of the access point, username, and password, please contact the support service of the operator.
The user with administrator rights can configure the Ajax security system via the app. The administrator account with the information about the added hubs is encrypted and placed on Ajax Cloud.
All the parameters of the Ajax security system and connected devices set by the user are stored locally on the hub. These parameters are inextricably linked with the hub: changing the hub administrator does not affect the settings of the connected devices.
One phone number may be used to create only one Ajax account.
Create the Ajax account in the app following the step-by-step guide. As part of the process, you need to confirm your email and phone number.
Ajax account allows to combine the roles: you can be the administrator of one hub, as well as the user of another hub.
Adding the hub to the Ajax app
Granting access to all system functions (to display notifications in particular) is a mandatory condition for controlling the Ajax security system via the smartphone/tablet.
- Login into your account.
- Open the Add Hub menu and select the way of registering: manually or step-by-step guidance.
- At the registration stage, type the name of the hub and scan the QR code located under the lid (or enter a registration key manually).
- Wait until the hub is registered and displayed on the application desktop.
Prior to installing the hub, make sure that you have selected the optimal location: the SIM card demonstrates consistent reception, all the devices have been tested for radio communication, and the hub is hidden from direct view.
The device developed only for indoor use.
The hub should be reliably attached to the surface (vertical or horizontal). We do not recommend using double-sided adhesive tape: it cannot guarantee secure attachment and simplifies the removal of the device.
Do not place the hub:
- outside the premises (outdoors);
- nearby or inside any metal objects that cause attenuation and shielding of the radio signal;
- in places with a weak GSM signal;
- close to radio interference sources: less than 1 meter from the router and power cables;
- in premises with temperature and humidity over the permissible limits.
- Fix the hub lid on the surface using bundled screws. When using any other fixing accessories, make sure that they do not damage or deform the hub lid.
- Put the hub on the lid and fix it with bundled screws.
Do not flip the hub when attaching vertically (for instance, on a wall). When properly fixed, the Ajax logo can be read horizontally.
Fixing the hub on lid with screws prevents any accidental shifting of the hub and minimizes the risk of device theft.
If the hub is firmly fixed, the attempt to tear it off triggers the tamper, and the system sends a notification.
Rooms in the Ajax app
The virtual rooms are used to group the connected devices. The user can create up to 50 rooms, with each device located only in one room.
Without creating the room, you are not able to add devices in the Ajax app!
Creating and Setting Up a Room
The room is created in the app using the Add Room menu.
Please assign a name for the room, and optionally, attach (or make) a photo: it helps to find the needed room in the list quickly.
By pressing on the gear button go to the room settings menu.
To delete the room, move all the devices to other rooms using the device setup menu. Deleting the room erases all its settings.
During the first hub registration in the app, you will be prompted to add devices to guard the room. However, you can refuse and return to this step later.
The user can add the device only when the security system is disarmed!
- Open the room in the app and select the Add Device option.
- Name the device, scan the QR code (or insert the ID manually), select the room and go to the next step.
- When the app starts searching and launches countdown, switch on the device: its LED will blink once. For detection and pairing to occur, the device should be located within the coverage area of the wireless network of the hub (at a single protected object).
Сonnection request is transmitted for a short time at the moment of switching on the device.
If the connection fails on the first try, switch off the device for 5 seconds and retry.
Up to 10 cameras or DVRs that support RTSP protocol can be connected to Hub.
Icons display some of Hub statuses. You can see them in the Ajax app, in the Devices menu .
|SIM card is not installed|
|The SIM-card is defective or has a PIN-code on it|
|Hub battery charge level. Displayed in 5% increments|
|Hub malfunction is detected. The list is available in hub states list|
|The hub is directly connected to the central monitoring station of the security organization|
|The hub have lost connection with the central monitoring station of the security organization via direct connection|
States can be found in the Ajax app:
- Go to the Devices tab .
- Select Hub from the list.
Click to open the list of Hub malfunctions.
The field appears only if a malfunction is detected
|Cellular signal strength||Shows the signal strength of the mobile network for the active SIM card. We recommend installing the hub in places with the signal strength of 2-3 bars. If the signal strength is weak, the hub will not be able to dial-up or send an SMS about an event or alarm|
|Battery charge||Battery charge level. Displayed in 5% increments|
|Lid||Status of the tamper that responds to hub dismantling:|
|External power||External power supply connection status:|
|Connection||Connection status between the hub and Ajax Cloud:|
|Cellular data||The hub connection status to the mobile Internet:|
If the hub has enough funds on the account or has bonus SMS/calls, it will be able to make calls and send SMS messages even if the Not connected status is displayed in this field
|Ethernet||Internet connection status of the hub via Ethernet:|
|Average Noise (dBm)|
Noise power level at Jeweller frequencies at the hub installation site.
The acceptable value is -80 dBm or lower
|Monitoring Station||The status of direct connection of the hub to the central monitoring station of the security organization:|
If this field is displayed, the security company uses a direct connection to receive events and security system alarms.
|Hub model||Hub model name|
|Hardware version||Hardware version. Unable to update|
|Firmware||Firmware version. Can be updated remotely|
|ID||ID/serial number. Also located on the device box, on the device circuit board, and on the QR code under the SmartBracket panel|
The hub and connected devices settings are in the Hub Settings menu .
- Users — define who has access to your security system, what rights are granted to them, how the hub notifies of events.
- Ethernet — configure the Ethernet connection.
- GSM — switch on/off cellular communication, configure the connection and check the balance.
- Geofence — set the reminder of arming/disarming the security system, when entering the specified area.
The user location is determined based on the data from the GPS antenna or iBeacon (only for Apple devices).
- Groups — open group mode settings.
- Security Schedule — set a schedule to arm/disarm the security system automatically.
- Detection Zone Test — run the detection zone test for the connected devices.
- Jeweller — configure the hub-detector ping interval and number of undelivered packets that determines connection failure.
The ping interval determines how frequently the devices communicate. The shorter interval (in seconds) means faster delivery of the events between the hub and the connected devices. The number of undelivered packets determines how quickly the hub identifies the connection loss with the device.
Calculation of the time for raising the alarm (with the default parameters):
(8 packets + 1 corrective) × 36 seconds inquiry interval = 5 minutes 24 seconds
In any case, alarms are transmitted immediately. Keep in mind that the ping interval can reduce the maximum number of connected devices:
|12 seconds||39 devices|
|24 seconds||79 devices|
|36 and more seconds||100 devices|
- Service — opens service settings of the hub.
Connection Failure Alarm Delay — regulates the alarm notification delay of the server connection loss.
Server Ping Interval — regulates the interval of sending pings from the hub to the server.
Time for generation of the message of the connection loss between the server and the hub is calculated as follows (with the default parameters):
(3 pings + 1 corrective) × 60 seconds inquiry interval + 300 seconds time filter = 9 minutes.
You can disable hub firmware auto-update (enabled by default).
- LED Brightness. Adjustment of the brightness of the LED logo. Available values are from 1 to 10 (the default value is 10).
- System Integrity Check. If enabled, the hub checks the status of all devices before arming: battery charge, tamper, connection. If a problem is detected, the hub does not arm the system and displays a warning.
- Arming Permission (the option becomes available only after enabling System Integrity Check). If enabled, the security system can be armed even with detected malfunctions.
To arm the security system with malfunctions through the Ajax app:
- Activate the security mode: you will receive a notification with a list of malfunctions.
- Confirm arming by pressing Arm.
- Activate the armed mode — you will receive a refusal.
- Confirm the arming of the system by re-activating the armed mode within 30 s.
- Automatic software updates. Configuring automatic OS Malevich firmware updates. When the hub is switched on, it automatically updates its firmware if a new version is available.
FireProtect and FireProtect Plus fire detector configuration
- Interconnected FireProtect alarm. The function activates built-in sirens of all fire detectors if at least one of them is triggered.
Interconnected alarms are supported by FireProtect and FireProtect Plus detectors with firmware versions 3.42 and higher. Please note that when you turn on the Interconnected Alarms, you cannot set the hub-detector ping interval (Jeweller settings) of more than 48 seconds.
- Ignore the first alarm. Snooze feature for alarms to check for the presence of smoke.
The option works as follows:
- The smoke alarm is triggered.
- The built-in 30 s timer inside the detector is activated.
- If, after 30 s smoke is detected, the alarm is transmitted to the hub.
This setting is recommended for premises with potential sources of false alarms, for example, if the detector is installed at the location where drafts are likely to occur.
- Hub logs. The settings for collecting and storing Ajax security system logs. You can disable logs or select a transmission channel:
- Wi-Fi (only in Hub Plus)
- No — logging is disabled
We do not recommend disabling logs as this information can help in the event of errors in the operation of the system!
Siren activation settings
- If the hub or detector body is open. When the function is active, the hub activates the connected sirens if the body of the hub, detector or any other Ajax device is open.
- If the panic button is pressed in the app. If enabled, the hub activates the connected sirens if the panic button is pressed in the Ajax app.
Disable the response of the siren by pressing the panic button on the SpaceControl key fob in the key fob settings (Devices SpaceContol Settings )
- Monitoring Station — configure CMS connection settings.
- PRO — configure PRO-accounts connected to the hub.
- Security Companies — choose and connect a security company in your region.
- Data Import — a menu for automatical transferring devices and settings from another hub. Keep in mind that you are in the settings of the hub on which you want to import data.
To return the hub to the factory default settings, switch it on, then hold the power button for 30 seconds (logo will start blinking red).
At the same time, all the connected detectors, room settings and user settings will be deleted. User profiles will remain connected to the system.
After adding the hub to the account, you become the administrator of this device. One hub can have up to 50 users/administrators. The administrator can invite users to the security system and determine their rights.
Events and Alarms Notifications
The hub notifies users of events in three ways: push notifications, SMS and calls.
Notifications are set in the menu Users:
|Event types||For what it is used||Types of notifications|
|Arming / Disarming||Notices are received after arming/disarming|
|Alarm||Notices of intrusion, fire, flood|
|Events||Notices of events related to the Ajax WallSwitch, Relay control|
|Malfunctions||Notices of the lost communication, jamming, low battery charge or opening of the detector body|
- Push notification is sent by Ajax Cloud to the Ajax Security system app, if an Internet connection is available.
- SMS is sent to the phone number indicated by the user when registering the Ajax account.
- The phone call means that the hub calls the number specified in the Ajax account.
The hub calls only in case of alarm to get your attention and reduce the feasibility of you missing a critical alert. We recommend to enable this type of notification. The hub consecutively calls all users who have enabled this type of notification in the order specified in the Users Settings. If the second alarm occurs, the hub will make a call again but not more than once in 2 minutes.
The call is automatically dropped as soon as you answer it. We recommend you to save the phone number associated with the hub SIM card in your contacts list.
Notification settings may be only changed for registered users.
Connecting a Security Company
The list of organizations connecting the Ajax system to the central monitoring station is provided in the Security Companies menu of the hub settings:
Contact representatives of the company providing services in your city and negotiate on the connection.
Connection to the central monitoring station (CMS) is possible via the Contact ID or SIA protocols.
Check the operational capability of the Ajax security system on a regular basis.
Clean the hub body from dust, spider webs and other contaminants as they appear. Use soft dry napkin suitable for equipment maintenance.
Do not use any substances containing alcohol, acetone, gasoline and other active solvents for cleaning the hub.
- Ajax Hub
- SmartBracket mounting panel
- Power supply cable
- Ethernet cable
- Installation kit
- GSM start package (available not in all countries)
- Quick Start Guide
While installing and using the hub, follow the general electrical safety regulations for using electrical appliances, as well as the requirements of regulatory legal acts on electrical safety.
It is strictly prohibited to disassemble the device under voltage! Do not use the device with a damaged power cable.
|Devices||up to 100|
|Groups||up to 9|
|Users||up to 50|
|Video surveillance||Up to 10 cameras or DVRs|
|Rooms||up to 50|
up to 5
(Scenarios by arming/disarming are not included in the general limit of the scenarios)
|Power supply||110 – 240 V AC, 50/60 Hz|
|Accumulator unit||Li-Ion 2 A⋅h (up to 15 hours of autonomous operation in case of inactive Ethernet connection)|
|Energy consumption from the grid||10 W|
|Frequency band||868.0 – 868.6 MHz or 868.7 – 869.2 MHz depending on the region of sale|
|Effective radiated power||8.20 dBm / 6.60 mW (limit 25 mW)|
|Modulation of the radio signal||GFSK|
|Radio signal range||Up to 2,000 m (any obstacles absent)|
|Communication channels||GSM 850/900/1800/1900 MHz GPRS, Ethernet|
|Operating temperature range||From -10°С to +40°С|
|Operating humidity||Up to 75%|
|Overall dimensions||163 × 163 × 36 mm|
|Certification||Security Grade 2, Environmental Class II SP2 (GSM-SMS), SP5 (LAN) DP3 in conformity with the requirements of EN 50131-1, EN 50131-3, EN 50136-2, EN 50131-10, EN 50136-1, EN 50131-6, EN 50131-5-3|
Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed accumulator.
If the device does not work correctly, you should first contact the support service—in half of the cases, technical issues can be solved remotely!
