DAHUA 8CH 720P KIT/HCVR4108C-S3/8-HFW1000R-0360B-S2 System

DAHUA 8CH 720P KIT/HCVR4108C-S3/8-HFW1000R-0360B-S2 System
DAHUA 8CH 720P KIT/HCVR4108C-S3/8-HFW1000R-0360B-S2 System
299,00€
Χωρίς ΦΠΑ: 241,13€
  • Απόθεμα: Διαθέσιμο
  • Κωδικός: DAHUA 8CH 720P KIT
  • Βάρος: 5.00kg

DAHUA 8CH 720P KIT/HCVR4108C-S3/8-HFW1000R-0360B-S2System

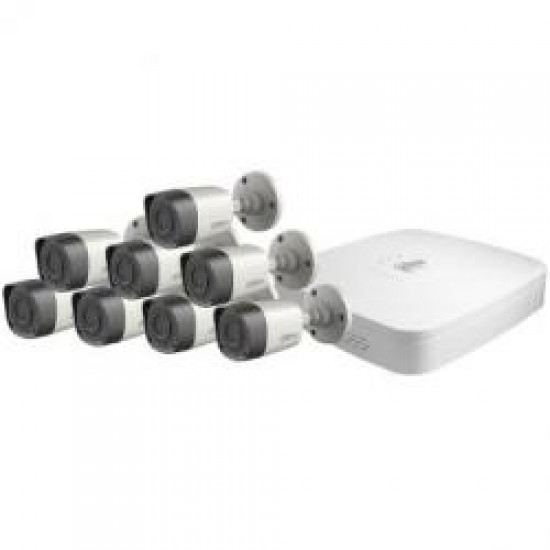

Το κιτ περιλαμβάνει

1 HDCVI DVR DAHUA HCVR 4108C-S3
8 CAMS HFW 1000R S2
1 τροφοδοτικό 12V 5A

Τεχνικά χαρακτηριστικά

Main ProcessorEmbedded processorOperating SystemEmbedded LINUXVideoInput8 channel, BNCStandardNTSC(525Line, 60f/s), PAL(625Line, 50f/s)DisplayInterface1 HDMI, 1 VGAResolution1920×1080, 1280×1024, 1280×720, 1024×768, 800×600Display Split1/4/8/9Privacy Masking4 rectangular zones (each camera)OSDCamera title, Time, Video loss, Camera lock, Motion detection, RecordingRecordingVideo/Audio CompressionH.264/G.711Record RateMain Stream:1*1080N(1~25/30fps)+7* (1~12fps)/1*720P(1~25/30fps)+7*(1~15fps)/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)Extra StreamCIF/QCIF(1~7fps)Bit Rate1~4096Kb/sRecord ModeManual, Schedule(Regular(Continuous), MD), StopRecord Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 secVideo DetectionTrigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer & Screen tipsVideo DetectionMotion Detection, MD Zones: 396(22×18), Video Loss & Camera BlankPlayback & BackupSync Playback1/4/9Search ModeTime/Date, MD & Exact search (accurate to second)Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoomBackup ModeUSB Device/Internal SATA burner/NetworkNetworkEthernetRJ-45 port (10/100M)Network FunctionsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2PMax. User Access128 usersSmart PhoneiPhone, iPad, Android, Windows PhoneStorageInternal HDD1 SATA port, up to 6TBAuxiliary InterfaceUSB Interface2 ports(2 Rear), USB2.0GeneralPower SupplyDC12V/2APower Consumption10W(without HDD)Working Environment-10°C ~+55°C / 10%~90%RH / 86~106kpa

Camera
Image Sensor1/4’’ 1Megapixel CMOSEffective Pixels1280(H)×720(V)Electronic Shutter1/50s~1/100,000s, 1/60s~1/100,000sVideo Frame Rate25fps/[email protected] [email protected](AGC ON), 0Lux IR on
Video Output1-channel BNC HDCVI high definition video outputMax.
IR LEDs Length20m, Smart IRDay/NightAuto(ICR) / Color / B/WNoise Reduction2DFocal Length3.6mm fixed lensAngle of ViewH: 58.5°Mount TypeM12Power SupplyDC12V±25%Power ConsumptionMax 3.5W
Working Environment-30°C~+60°C / Less than 95%RH ProtectionIP67CartonDimension(W×D×H)387mm×374mm×396mm

Weight: 4 kg



   DAHUA SMART PSS                DAHUA CONFIGURATION TOOL



Προγράμματα διαχείρισης και παραμετροποίησης  DAHUA DVR



Οδηγίες χρήσης DAHUA DVR



Εδώ θα βρείτε αναλυτικές οδηγίες χρήσης  για καταγραφικά DAHUA
