DAHUA 8CH 4MPIXEL KIT 4 HCVR71084M PLUS 8 CAMS HFW1400R PLUS HD 1TERRA PLUS CCTV CABLE

DAHUA 8CH 4MPIXEL KIT 4 HCVR71084M PLUS 8 CAMS HFW1400R PLUS HD 1TERRA PLUS CCTV CABLE
DAHUA 8CH 4MPIXEL KIT 4 HCVR71084M PLUS 8 CAMS HFW1400R PLUS HD 1TERRA PLUS CCTV CABLE
620,00€
Χωρίς ΦΠΑ: 500,00€
  • Απόθεμα: Διαθέσιμο
  • Κωδικός: DAHUA 8CH 4MPIXEL
  • Βάρος: 7.00kg

DAHUA 8CH 4MPIXEL KIT 4 HCVR71084M PLUS 8 CAMS HFW1400R PLUS HD 1TERRA PLUS CCTV CABLE

Ολοκληρωμένο σύστημα CCTV ανάλυσης 4 Mpixel
Κατάλληλο γιά επιτήρηση σε χώρους με μεγάλη ανάγκη καταγραφής  λεπτομερειών.

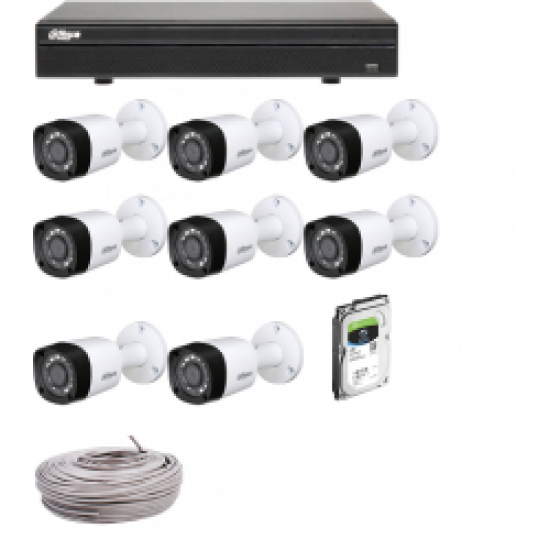

Το συστημα περιλαμβάνει

1 DVR DAHUA HCVR7108-4M  4MPIXEL
8 CAMS HAC-HFW1400R 4 MPIXEL
1 HD SEAGATE SKYHAWK 1 TERRA
100 M CCTV CABLE  mini RG59 PLUS 2X0.50 POWER


HCVR 7108-4M Tεχνικά χαρακτηριστικά


Main Processor

Embedded Processor

Operating System

Embedded LINUX

Display

Interface

1 HDMI(up to 3840x2160),1 VGA

Resolution

3840x2160,1920×1080, 1280×1024, 1280×720, 1024×768

Multi-screen Display

4CH: 1/4/6

8CH: 1/4/8/9/16

16CH: 1/4/8/9/16/25

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video

Loss,Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

4CH: 1/4

8CH: 1/4/9

16CH: 1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port, up to 8TB capacity

eSATA

N/A

Auxiliary Interface

USB

2 USB Ports (1 USB 2.0 , 1 USB 3.0)

RS232

N/A

RS485

1 Port, for PTZ Control

Third-party Support

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Audio and Video

HDCVI Camera Input

4/8/16 Channel

IP Camera Input

4+2/8+4/16+8 Channel, each channel up to 8MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Compression

H.264+/H.264

Resolution

4K, 4MP, 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF

Record Rate

Main stream: 1st channel 4K(1~12/15fps)/ 4MP(1~15fps), others 4MP(1~15fps);

1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

Sub steram:D1/CIF/QCIF(1~25/30fps)

Bit Rate

1Kbps ~ 12288Kbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec,

Post-record: 10 ~ 300 sec

Network

Interface

1 RJ-45 Port (1000M)

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP,

NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm

Server, P2P,IP Search (Support Dahua IP camera,

DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.42, CGI Conformant

Electrical

Power Supply

4/8CH: DC12V/2A, 16CH: DC12V/3A

Power Consumption

<15W (Without HDD)

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Construction

Dimensions

Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")

Net Weight

1.5kg (3.3 lb) (without HDD)

Gross Weight

2kg (4.4lb)

Installation

Desktop installation

Certifications

Certifications

FCC: Part 15 Subpart B ICES 003 Issue 6

CE: EN 55032: 2012+AC:2013 (Class B)

EN 55024 : 2010 EN 61000-3-2 : 2014

EN 50130-4: 2011 EN 61000-3-3 : 2013

UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07


HAC-HFW1400R Χαρακτηριστικά

Camera

Image Sensor

1/3" CMOS

Effective Pixels

2688(H)×1520(V), 4.1MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination

0.03Lux/F2.0, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance





   DAHUA SMART PSS                DAHUA CONFIGURATION TOOL



Προγράμματα διαχείρισης και παραμετροποίησης  DAHUA DVR



Οδηγίες χρήσης DAHUA DVR



Εδώ θα βρείτε αναλυτικές οδηγίες χρήσης  για καταγραφικά DAHUA
